TILTSEE tilt indicators
For some instruments that must be kept upright during transportation or handling, the operator is reminded to ensure that
the instrument remains upright and to indicate and record the occurrence of unexpected tilting incidents by placing tilt indication labels.
When the protected instrument tilts more than 80 degrees from the upright Angle,
the small circular window used for display changes from silver white to red to record and display the tilting accident;

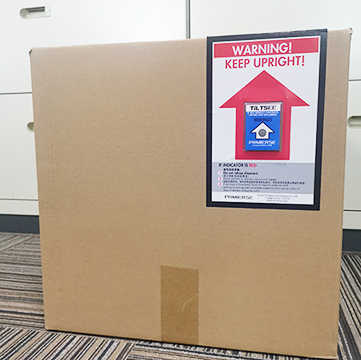

Tilt warning label correct placement: the best placement is the upper left or upper right corner of the goods.
TILTSEE tilt indicators can easily show whether the goods have been tilted, horizontally or upside down during transport or storage,
and monitor whether the storage of the goods meets the storage requirements at all times,
thus effectively preventing and reducing the damage of the goods during transport.
Scope of application
TILTSEE is a better option for those who require that goods must remain upright and intact during transit,
and constantly monitor the storage of goods for compliance with storage requirements.
TILTSEE is a friend of the carrier, and vibration does not cause it to work,
even if the plane's acute takeoff Angle does not cause activation.
Therefore, most of them are used in large precision components, refrigeration equipment, large computer systems,
top-heavy equipment, medical equipment, large glass products and other goods that have strict requirements
for storage location and placement direction in transportation.
Such as the control and monitoring of heavy machinery, large computer equipment, circuit boards, large batteries,
hydraulic presses and other product hosts.
TILTSEE main specifications:
Main specification | TILTSEE? |
Material number | 20011 |
Sensor type | Round stainless steel sheet |
Installation method | Tear off the bottom adhesive paper |
Serial number barcode | Yes |
Indicated inclination | No |
Mark tilt reading | No |
Reset and reuse | No |
Angle of activation | Greater than 80° |
Packing quantity | 100 PCS/box |
Monitoring range | Single plane |
Precision | ±5° at 20°C / 68°F, 1 standard atmosphere |
Operating temperature and humidity | -40° C to 60 ° C /-40°F to 140°F 5-99%RH(relative humidity), non-condensing |
Adhesive type | 5 mil thick viscous acrylic adhesive |
Adhesive shelf life | Two years |
Dimension | 2.92in x 2.37in x 0.21in / 74.27mm×60.31mm×5.29mm |
Constitute | Rigid polystyrene housing non-magnetic steel indicator |
Weight | Approximately ~12.2g |
Install | Use pressure sensitive adhesive or self tapping screws or gun nails to fasten to the packaging |
Customization | Can customize the corporate logo(MOQ number is 5000) |
